The SevenSegmentDisplay driver is used to drive a single seven segment display module.

​
Where to buy

https://www.aliexpress.com/item/1005001616709100.html

​
How to wire

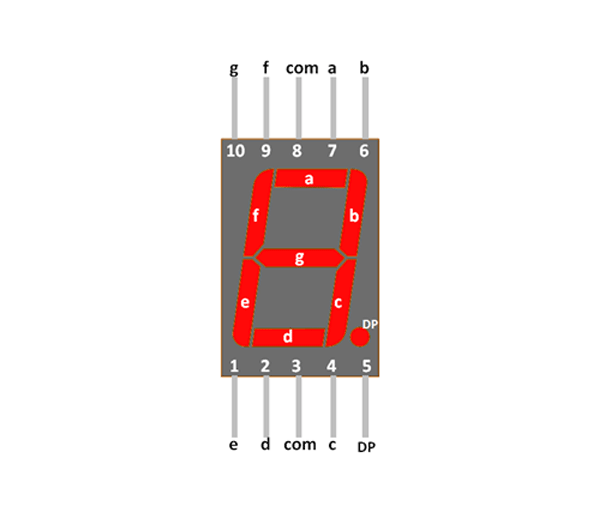

The module has 10 pins. 7 of them are for each segment of the display module. One is for the decimal point, and two are common ground.

Each pin should be connected to a valid GPIO pin, and you should put a 330 ohm resistor between each LED. This means you will have 8 LEDs.

You can’t just place a single resistor for all the LEDs. If you do this, you’ll get varying brightness depending on how many segments are illuminated.

​
Using the driver

Instantiate the driver using the static make() function, passing a reference to each pin.

use DanJohnson95\Pinout\Facades\PinService;
use DanJohnson95\Pinout\Drivers\SevenSegmentDisplay;

$driver = SevenSegmentDisplay::make(
    pinA: PinService::pin(13),
    pinB: PinService::pin(14),
    pinC: PinService::pin(15),
    pinD: PinService::pin(16),
    pinE: PinService::pin(17),
    pinF: PinService::pin(18),
    pinG: PinService::pin(19),
    pinDP: PinService::pin(20)
);

You can call the following methods on the driver:

​
Available methods

​
renderInteger

​
showDecimalPoint

​
hideDecimalPoint

​
clearDisplay
